The Ultimate Water Tile Guide

Master transparent water tiles, depth illusion, and advanced map editing for Ultima Online / ServUO

Technical Guide Ultima Online ServUO

Table of Contents

1. Foundations of the Dual-Layer System 2. Transparency Mechanics 3. Water Geometry: Land vs. Statics 4. Risks & Stability Concerns 5. Implementation Guide 6. Creating Depth Illusion 7. Server-Side Scripting 8. Performance Optimization

Introduction

The architectural complexity of the Ultima Online map system represents a pioneering achievement in the history of MMORPGs. This comprehensive guide explores the technical implementation of transparent water tiles within the ServUO framework, examining the legacy client's rendering pipeline, the dual-layer map data structure, and the performance constraints inherent in software-based isometric projection.

Understanding the fundamental distinction between land-based water and static water items is crucial for creating realistic, performant underwater environments with visible depth and marine life.

Foundations of the Dual-Layer Map Structure

The world of Ultima Online is not rendered as a continuous 3D mesh but as a highly optimized grid-based database split into two primary layers: the terrain (Land) and the objects (Statics). This bifurcation is central to how the game handles environmental aesthetics and performance.

Land Tile Layer (Map.mul)

File Storage: map*.mul, map*.idx

Grid Size: 6144×4096 tiles

Data Structure: 3-byte (16-bit index + 8-bit altitude)

Rendering: Pre-rendered 44×44 pixel isometric tiles or textured quads for slopes

Alpha Support: None (opaque background)

Performance: Extremely low cost

Network: Cached locally on client

The terrain layer provides the foundation of the world. When all four corners of a tile share the same altitude, a pre-rendered pixel block is used. Different altitudes trigger textured quad rendering to create slopes.

Static Tile Layer (Statics.mul)

File Storage: statics*.mul, staidx*.idx

Content: Buildings, decorative items, water features

Rendering: Sprite-based static art

Alpha Support: Supported via TileData flags

Performance: Moderate (increases with density)

Network: Sent in 20-tile radius blocks

Properties: Configurable via tiledata.mul

The static layer sits atop the land layer and contains items that don't change position. Unlike land tiles, static tiles can possess various flags that determine physical and graphical properties, including transparency.

Layer Comparison

Feature Land Tiles (Terrain) Static Tiles (Items/Deco)
File Storage map*.mul, map*.idx statics*.mul, staidx*.idx
Rendering Basis Raw pixel blocks or textured quads Sprite-based static art
Alpha Support None (Opaque background) Supported via TileData flags
Performance Cost Extremely low; pre-rendered Moderate; increases with density
Network Logic Cached on client locally Sent in 20-tile radius blocks

Mechanics of Transparency

The Software Renderer Challenge

The classic Ultima Online client utilizes a software renderer, meaning the CPU is responsible for rasterization. This imposes significant constraints on implementing visual effects like transparency, as every pixel must be manually blended by the processor rather than offloaded to a GPU.

The Translucent Flag

Transparency must be explicitly flagged in the tiledata.mul file using the Translucent flag (bitmask 0x00000008). This tells the engine to invoke an alpha-blending routine during rendering.

How Alpha Blending Works

The engine renders the world from back-to-front:

  1. Land tiles are drawn first as the "bottom" of the frame buffer
  2. When a static tile with the translucent flag is rendered, the CPU blends the sprite's pixel data with the color already in the buffer
  3. This creates the see-through effect, allowing players to see the terrain beneath the water surface
1

Render Land Layer

Sand, coral, or kelp tiles drawn as opaque background

2

Check Translucent Flag

Engine checks if static water has transparency enabled

3

Alpha Blend

CPU blends water sprite pixels with land colors

4

Final Render

Transparent water surface reveals terrain below

The Geometry of Water: Land vs. Statics

Critical Concept: Why Land Tiles Can't Be Transparent

Land tiles form the final layer of the rendering buffer and cannot be transparent because there is nothing rendered behind them to see. This is the fundamental limitation that requires the "Static Over Land" hybrid approach.

The "Static Over Land" Method

To create transparent water, shorelines typically use a "sand" land tile with a "static water" item placed over it. This allows:

  • The sand to serve as the physical floor (collision/movement)
  • The static water to provide the visual surface (transparency effect)
  • Marine life and plants to exist in the Z-space between them

Layering Visualization

Static Water (Z = 0) Transparent surface with Translucent flag
↕ Z-Depth Gap (5 units) Fish, Plants, Coral decorations visible here
Sand Land Tile (Z = -5) Opaque floor providing collision and base color

Performance Warning

Replacing an entire opaque ocean with static water items significantly changes the engine's performance profile. In a standard ocean, the client receives zero statics. With static water, the client must process hundreds of items as the player moves, potentially causing "tile pop-in" or stuttering during CPU-heavy alpha-blending operations.

Risks & Stability Concerns

Critical: The "Does Not Compute" Crash

A client crash occurs when a tile has both the Translucent flag and a hue applied to it. When the renderer attempts to draw a translucent image that has been palette-shifted, it creates a memory conflict that crashes the client.

Solution: Import unique, unhued art for each desired shade of water rather than using hues. Create separate art files for blue water, green water, murky water, etc.

Server-Side System Impact

Replacing land-based water with sand land tiles breaks essential gameplay systems unless scripts are updated. Systems like HarvestSystem.cs and Fishing.cs rely on land tile IDs to determine environment types.

Solution: Update all scripts that check for water tiles to include your new land tile IDs. This includes fishing, ship movement, water-based spawns, and any custom water detection logic.

Performance Degradation

Large expanses of static water increase network traffic and client-side processing. The 20-tile radius static item transmission can cause stuttering or lag, especially in areas with dense underwater decorations.

Solution: Use "burning statics" (permanently freezing items into statics.mul) and optimize underwater decoration density. Consider using static water only in key visual areas.

Ultimate Implementation Guide

This comprehensive guide provides step-by-step instructions for implementing custom, see-through water effects while maintaining server stability and client performance.

Step 1

Understanding the Core Concept

Because land tiles are the final layer of the rendering buffer, they cannot be transparent. To create transparent water, you must use a Hybrid Layering approach:

Land Layer: Used for the "floor" (Sand, Coral, or Kelp tiles at Z = -5)
Static Layer: Used for the "surface" (Water items with transparency flags at Z = 0)
Step 2

TileData Configuration

Use a tool like UOFiddler or MulPatcher to edit your tiledata.mul file. Configure your static water tiles with these specific hex flags:

0x00000008
Translucent
Enables alpha-blending for see-through effect
0x00000200
Surface
Makes the tile a platform you can stand or sail on
0x00000040
Impassable
Prevents walking on surface without a boat (use for deep water)
Combined Flags Example
Flags = 0x00000008 | 0x00000200 | 0x00000040
// Translucent + Surface + Impassable
// Result: Transparent water surface that requires boats
Step 3

Z-Axis Depth Formula

Visual depth is created by the gap between the land "floor" and the static "surface." In the isometric view, the screen position is calculated using this formula:

Yscreen = (X × 22) + (Y × 22) - (Z × 4)

To achieve a deep-water look:

Land Tiles (Floor): Z = -5 Lower the ocean floor
Static Water (Surface): Z = 0 Water at standard height
Visual Depth: 5 Z-units = 20 pixels vertical Visible space for marine life
Step 4

Avoiding the Hue Crash

CRITICAL: In the legacy client, applying a Hue to an item with the Translucent flag causes an immediate crash!

The Solution

Do not hue your water tiles. If you need different colored water (blue, green, murky), you must import unique, pre-colored art for each variation into your art.mul files.

Import blue water art → Use unhued
Import green water art → Use unhued
Import murky water art → Use unhued
Import clear water art → Apply hue = CRASH

Creating Stunning Depth Illusion

The most visually impressive aspect of transparent water is the ability to see underwater life and terrain between the land floor and static water surface. This section covers how to maximize this effect.

Underwater Plants

Z-Range: -5 to -1

Recommended Items:

  • Kelp and seaweed (various heights)
  • Coral formations
  • Sea grass clusters

Placement Tips:

  • Vary heights for natural look (-2, -3, -4)
  • Cluster plants in groups
  • Leave open sand patches

Marine Life

Z-Range: -4 to -2

Recommended Items:

  • Fish (static decorations or mobiles)
  • Crabs and lobsters
  • Jellyfish
  • Shells and starfish

Animation Tips:

  • Use animated fish statics when available
  • Place at mid-depth (Z = -3) for best visibility
  • Scatter naturally, avoid grid patterns

Terrain Features

Z-Range: -5 to -1

Recommended Items:

  • Rocks and boulders
  • Coral reefs
  • Sunken treasures
  • Shipwreck pieces

Design Tips:

  • Create visual "paths" with rocks
  • Build reef structures at varying heights
  • Add treasure chests at lowest depth

Lighting Effects

Techniques:

  • Light rays using diagonal static items
  • Bioluminescent plants
  • Glowing crystals or magic effects

Implementation:

  • Place light sources at Z = -1 (just below surface)
  • Use translucent static items for rays
  • Consider nighttime appearance

Complete Depth Layering Example

Z = 0 Static Water Surface (Translucent)
Z = -1 Tall kelp tips, light rays
Z = -2 Swimming fish, floating jellyfish
Z = -3 Medium kelp, coral formations
Z = -4 Low sea grass, crabs, shells
Z = -5 Sand/Coral Land Tile Floor, rocks, treasure

Pro Tips for Maximum Visual Impact

Depth Gradients: Start shallow near shore (Z = -2) and deepen gradually to open ocean (Z = -5 or lower)
Density Variation: Dense decorations near shore, sparse in deep water to maintain performance
Color Coordination: Match plant/rock colors to water tint for cohesive appearance
Test Visibility: Check appearance in different lighting conditions (day, night, dungeon)

Server-Side Scripting for ServUO

Changing land tiles from "water" to "sand" will prevent players from fishing and break other water-dependent systems. You must update your server scripts to recognize your new land tile IDs.

Updating Fishing.cs

Scripts/Items/Skill Items/Tools/Fishing.cs
// Find the water tiles array (usually near the top of the file)
private static int[] m_WaterTiles =
{
    0x00A8, 0x00AB, // Standard Water
    0x0016, 0x0019, // Your New Sand IDs
    0x5797, 0x7485  // Additional custom water floor IDs
};

// Alternative: Modify the IsWater() method
public static bool IsWater(int tileID)
{
    // Original water tiles
    bool isOriginalWater = (tileID >= 0xA8 && tileID <= 0xAB);

    // Your custom sand/floor tiles
    bool isCustomFloor = (tileID >= 0x16 && tileID <= 0x19) ||
                         (tileID >= 0x5797 && tileID <= 0x7485);

    return isOriginalWater || isCustomFloor;
}

Updating HarvestSystem.cs

Scripts/Services/Harvest/HarvestSystem.cs
// In the HarvestSystem class, find the water validation
public override bool CheckResources(Mobile from, Item tool, HarvestDefinition def,
                                    Map map, Point3D loc, bool timed)
{
    // Add your custom floor tiles to water check
    int landID = map.Tiles.GetLandTile(loc.X, loc.Y).ID;

    // Check if it's a valid water fishing location
    bool isWaterLocation = IsWaterTile(landID);

    if (!isWaterLocation)
    {
        from.SendLocalizedMessage(1043493); // That is not water!
        return false;
    }

    return base.CheckResources(from, tool, def, map, loc, timed);
}

private bool IsWaterTile(int tileID)
{
    // Original water tiles
    if (tileID >= 0xA8 && tileID <= 0xAB)
        return true;

    // Your custom sand floor tiles
    if (tileID >= 0x16 && tileID <= 0x19)
        return true;

    // Additional custom IDs
    if (tileID == 0x5797 || tileID == 0x7485)
        return true;

    return false;
}

Updating Ship Movement (BaseBoat.cs)

Scripts/Multis/Boats/BaseBoat.cs
// Find the CanFit() or similar method that checks water
public bool CanFit(Point3D p, Map map, int itemID)
{
    if (map == null || map == Map.Internal)
        return false;

    LandTile landTile = map.Tiles.GetLandTile(p.X, p.Y);

    // Check if the land tile is valid for boat travel
    if (!IsWaterTile(landTile.ID))
        return false;

    // Additional checks...
    return true;
}

private bool IsWaterTile(int tileID)
{
    // Standard water
    if (tileID >= 0xA8 && tileID <= 0xAB)
        return true;

    // Custom sand floor tiles (your transparent water floors)
    if (tileID >= 0x16 && tileID <= 0x19)
        return true;

    return false;
}

Additional Systems to Update

  • Water Spawners: Any spawn systems that check for water tiles
  • Weather Effects: Rain splash effects on water surfaces
  • Movement Scripts: Swimming animations and speed calculations
  • LobsterTrap.cs: Lobster pot placement validation
  • Custom Systems: Any addon that validates water locations

Performance Optimization

Large-scale water implementations can impact both client and server performance. Follow these optimization strategies to maintain smooth gameplay.

Static Density Management

Problem: Static items are sent to the client in a 20-tile radius. Filling the entire ocean with statics can cause significant lag.

Solutions:

  • Use transparent water only in key visual areas (ports, beaches, shallow water)
  • Transition to standard opaque water in deep ocean
  • Limit underwater decorations based on visibility
  • Create "zones" of detail: high near shore, low in open water

Burning Statics

Technique: "Freeze" decorative items permanently into the statics.mul file.

Benefits:

  • Moves processing from server's real-time item manager to client's file loading
  • Reduces server memory usage
  • Eliminates network transmission for frozen items
  • Improves client-side rendering performance

Tools:

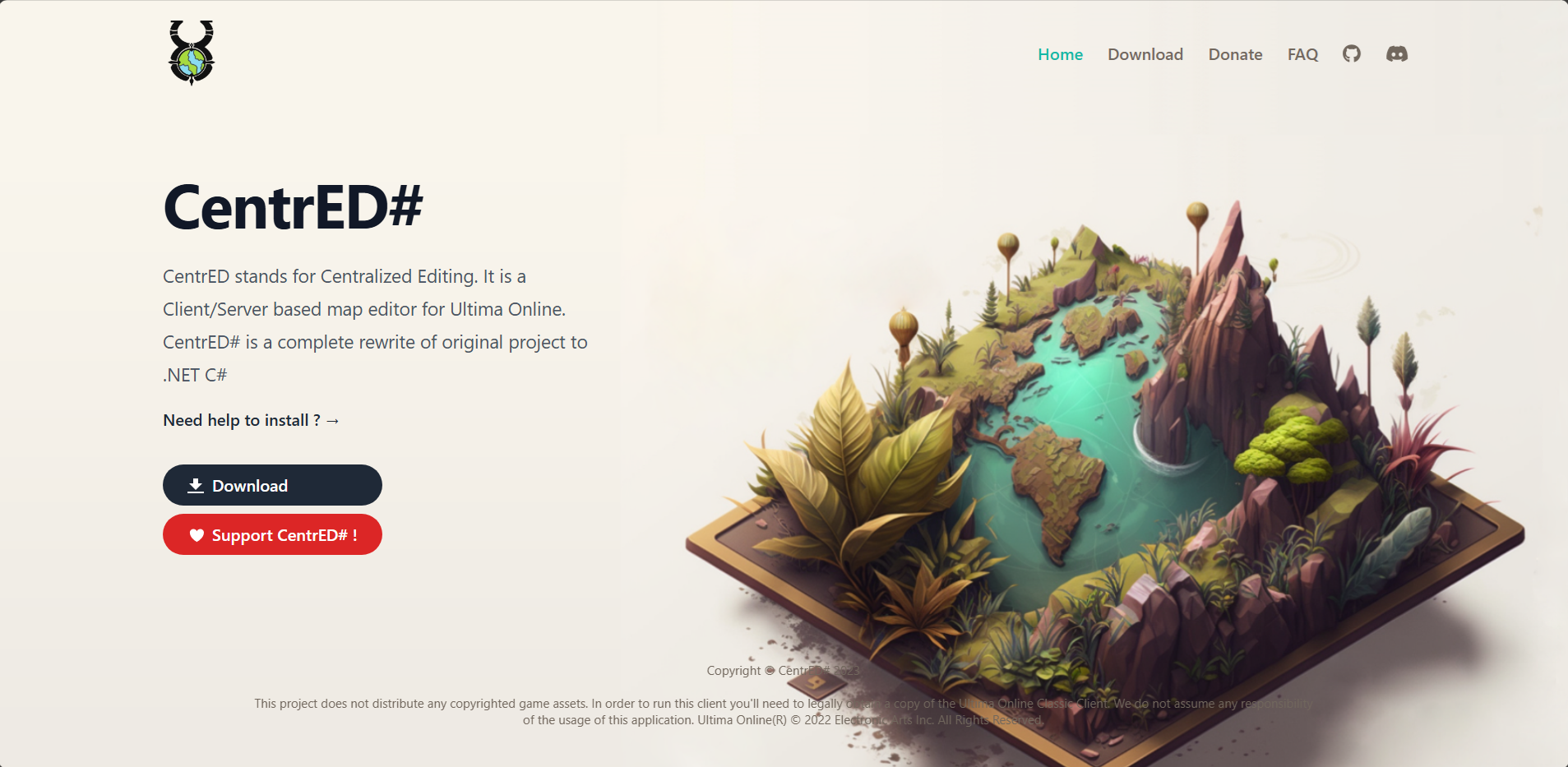

  • CentrED# (map editor with burn feature)
  • UOLandscaper (advanced map modification)

LOD (Level of Detail) Strategy

Concept: Vary decoration density based on player proximity and depth.

Implementation:

  • High Detail Zone: 0-20 tiles from shore, Z = -2 to 0, dense plants/fish
  • Medium Detail Zone: 20-50 tiles from shore, Z = -3 to -1, moderate decoration
  • Low Detail Zone: 50+ tiles from shore, Z = -5 to -2, sparse or no decoration

Client Optimization

Recommendations for Players:

  • Use ClassicUO client for better performance with translucent tiles
  • Disable or reduce particle effects if experiencing lag
  • Lower screen resolution in water-heavy areas

Server Configuration:

  • Set appropriate ViewRange in ServerConfiguration (reduce if necessary)
  • Consider seasonal decoration (remove during events with high player density)

Performance Benchmarks

Scenario Static Count (20-tile radius) Client CPU Usage Recommended
Standard Opaque Ocean 0-50 Low (5-10%) Baseline
Transparent Water, No Decoration 500-800 Medium (15-25%) Acceptable
Transparent Water, Light Decoration 800-1200 Medium-High (25-40%) Caution
Transparent Water, Heavy Decoration 1200-2000+ High (40-60%+) Avoid

Essential Tools & Resources

Core tools for implementing transparent water tiles

UOFiddler
🛠️ Editor

UOFiddler

Comprehensive UO file editor. Edit graphics, animations, sounds, maps, and more from UO data files.

File Editor Essential Tool
Visit UOFiddler →
CentrED#
🗺️ Map Tool

CentrED#

Advanced map editor for Ultima Online. Create and modify custom world maps with ease. Note: CentrED# is the only actively maintained version.

Map Editor Active Development
Get CentrED# →
ServUO Forums
💬 Community

ServUO Forums

Join the ServUO community. Get support, share scripts, and connect with other UO developers.

Support Active
Join Community →

Conclusion

Creating transparent water tiles with depth illusion in Ultima Online is a complex but rewarding endeavor. By understanding the dual-layer map system, properly configuring TileData flags, implementing the hybrid Static-Over-Land approach, and carefully scripting server-side systems, you can create stunning underwater environments that enhance player immersion.

Remember to balance visual fidelity with performance, test thoroughly across different client types, and always avoid the critical hue + translucent crash. With proper planning and implementation, your server can feature some of the most visually impressive water environments in the UO emulation community.
